Description

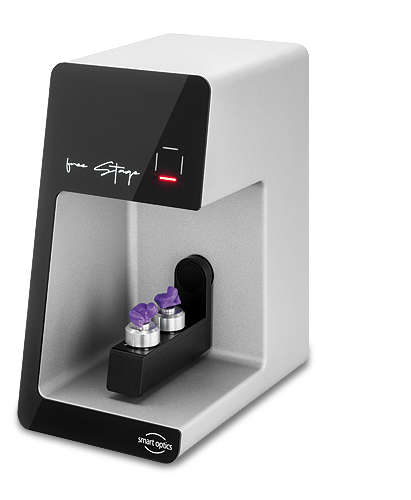

The Free Stage was developed for quality-conscious audiologists and is the ideal solution for trend-oriented shops.  The system-independent scanner for digitising ear canal impressions with its slim design is easy to set up at any workstation and turns it into an eye-catcher.

The contemporary design of the 3D scanner combines an elegant look with a robust construction. The smooth surfaces as well as the wide opening allow easy access. The scanner’s ergonomic shape, obtained by deliberately not using a cover for the housing, simplifies the workflow and provides the operator with the opportunity to impress the customer with the entire scanning process.

The innovative touch sensor enables the user to start the scanning process directly at the scanner, saving you valuable time.  The consistently high quality of materials used in Smart Optics products is always most important.

Measurement
Accuracy: 20 µm
Scanning time: 32 seconds (two models of ear impression)
Technology: Structured-light scanner with durable high-performance-LED
Resolution of scan quality: adjustable
Output data format: STL, ASCII, MSH

Device
Dimensions (W × L × H): 186 × 292 × 348 mm
Weight: 6,5 kg
Connection voltage and power consumption: 100 – 240 V AC 50 / 60 Hz, max. 30 W
Interface: USB
Warranty: 36 months

***Special Order – non-returnable item (except under warranty)***
